Getting Started

MIDAS is an exploratory data analysis tool that runs in your browser. No installation required - start analyzing right away.

Tutorial: Exploratory Data Analysis with the Iris Dataset

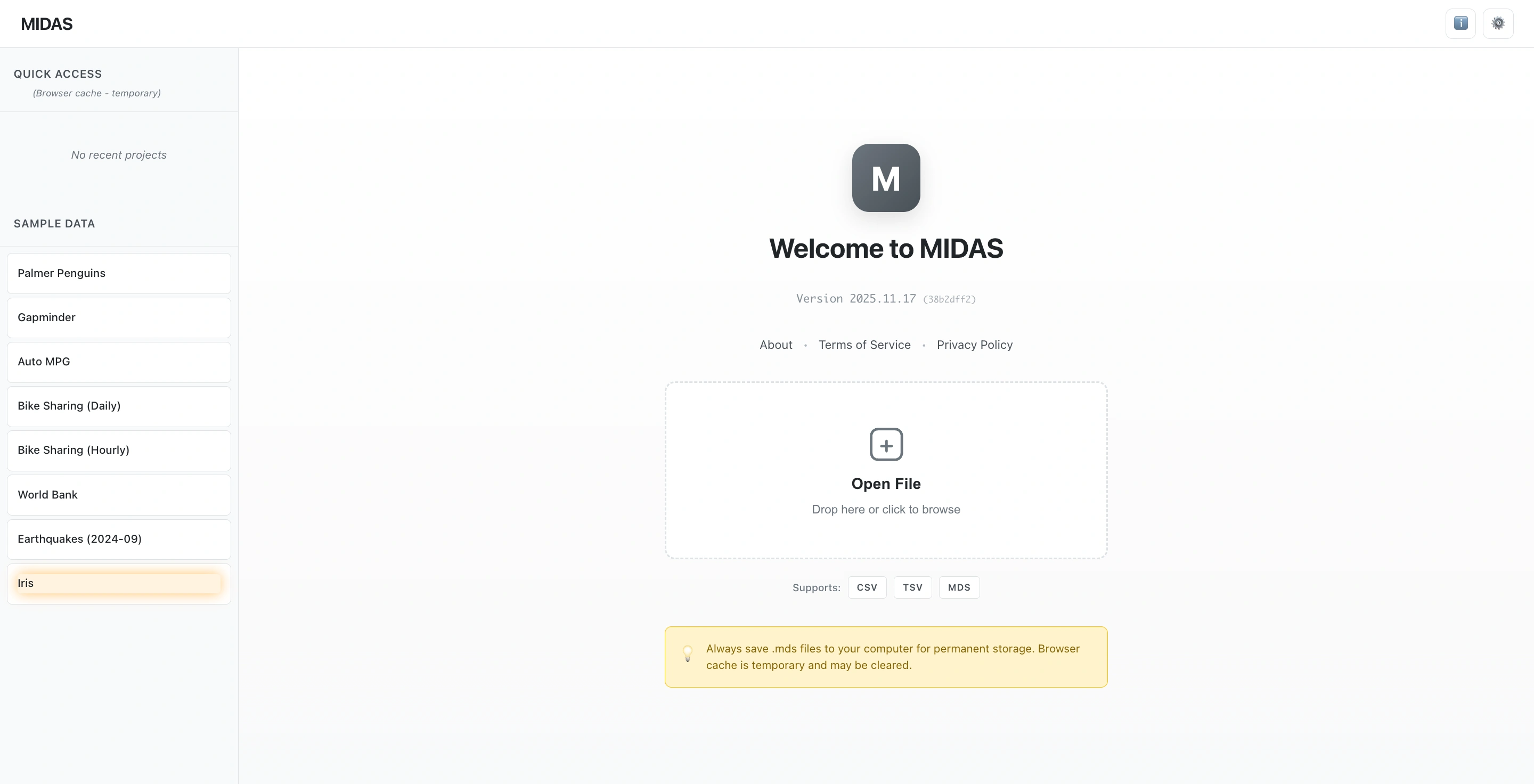

1. Open Sample Data

1. When you open MIDAS, the launcher screen appears
2. Click Iris dataset from the "Sample Data" section
3. The project screen opens

The Iris dataset contains measurements of petals and sepals from three species of iris flowers (150 rows × 5 columns).

2. Explore the Data

Three tabs open automatically:

• Data Table (left): Displays data in tabular format
• Statistics (top right): Shows statistics for selected columns
• Selected Rows (bottom right): Details of selected rows

Try the interactive demo below. Click columns to select them, or click rows to view their details.

Each column header shows the data type (float64, string, etc.) and measurement scale (interval, nominal, etc.). Click the button at the right edge of a column to sort by that column.

MIDAS automatically infers data types and measurement scales when loading data. Measurement scales play an important role in statistical analysis and graph creation. See Data Preparation and Import for details.

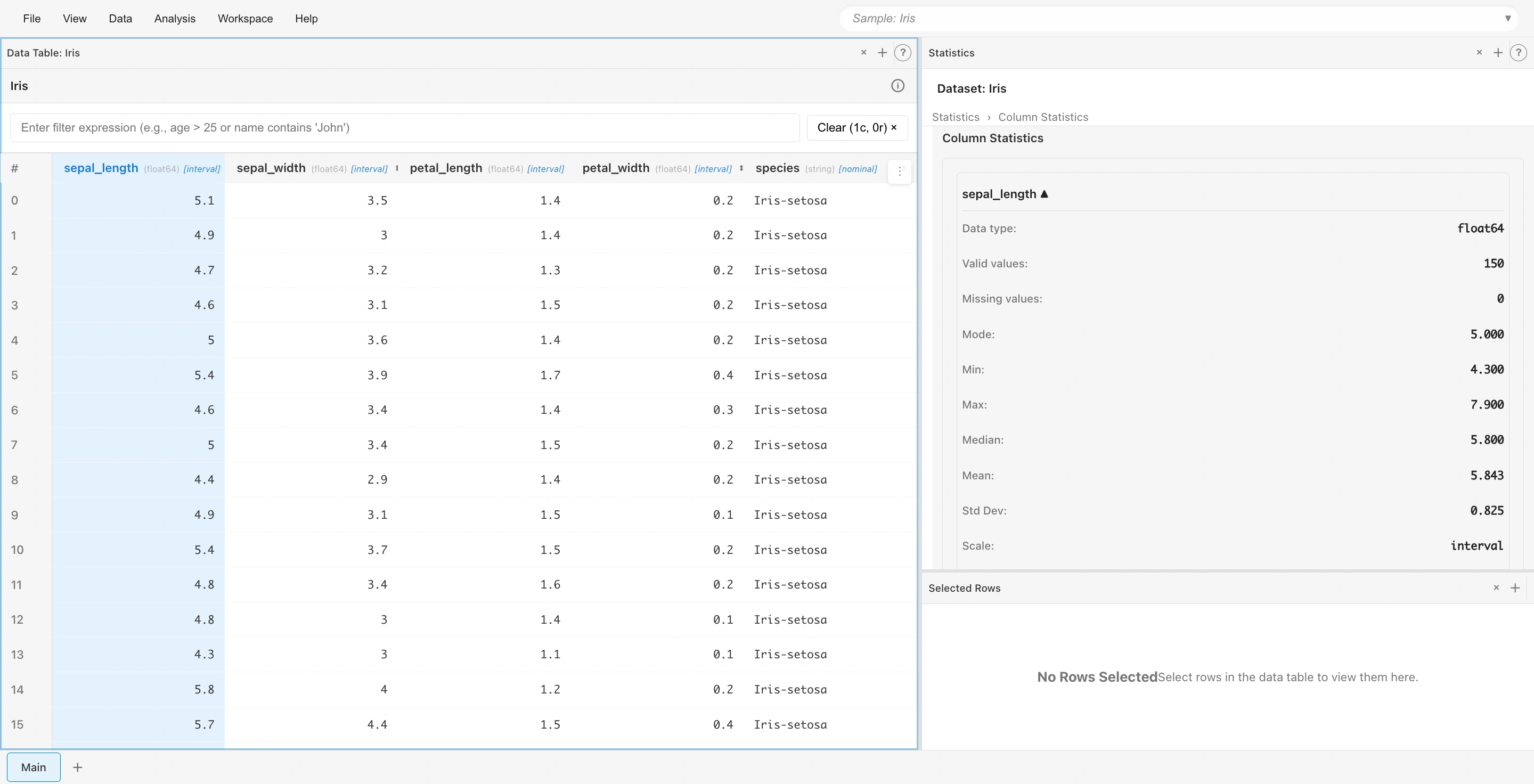

3. View Basic Statistics

Let's check basic statistics to understand the data overview.

1. Click a column name in the Data Table tab (e.g., sepal_length)
2. A histogram and statistics automatically appear in the Statistics tab on the upper right

Statistics displayed:

• Moments: mean, std (standard deviation), skewness, ex. kurt (excess kurtosis)
• Spread: iqr (interquartile range), range
• Quantiles: 0%(min), 1%, 5%, 10%, 25%, 50%, 75%, 90%, 95%, 99%, 100%(max)

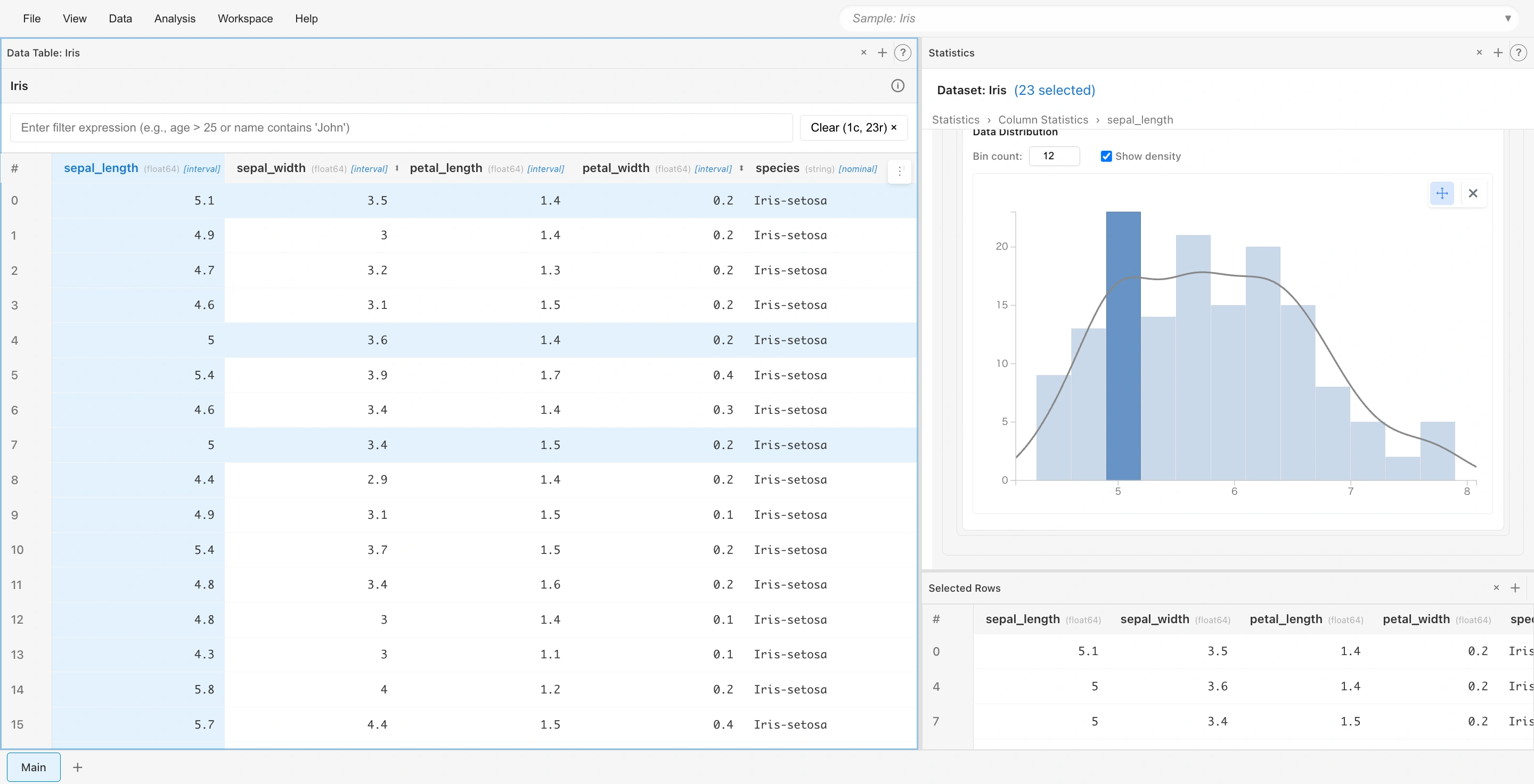

Select rows from histogram:

Click a bar in the histogram to select rows within that range. Details appear in the Selected Rows tab at the bottom right.

You can examine selected row data in detail or analyze only data within a specific range.

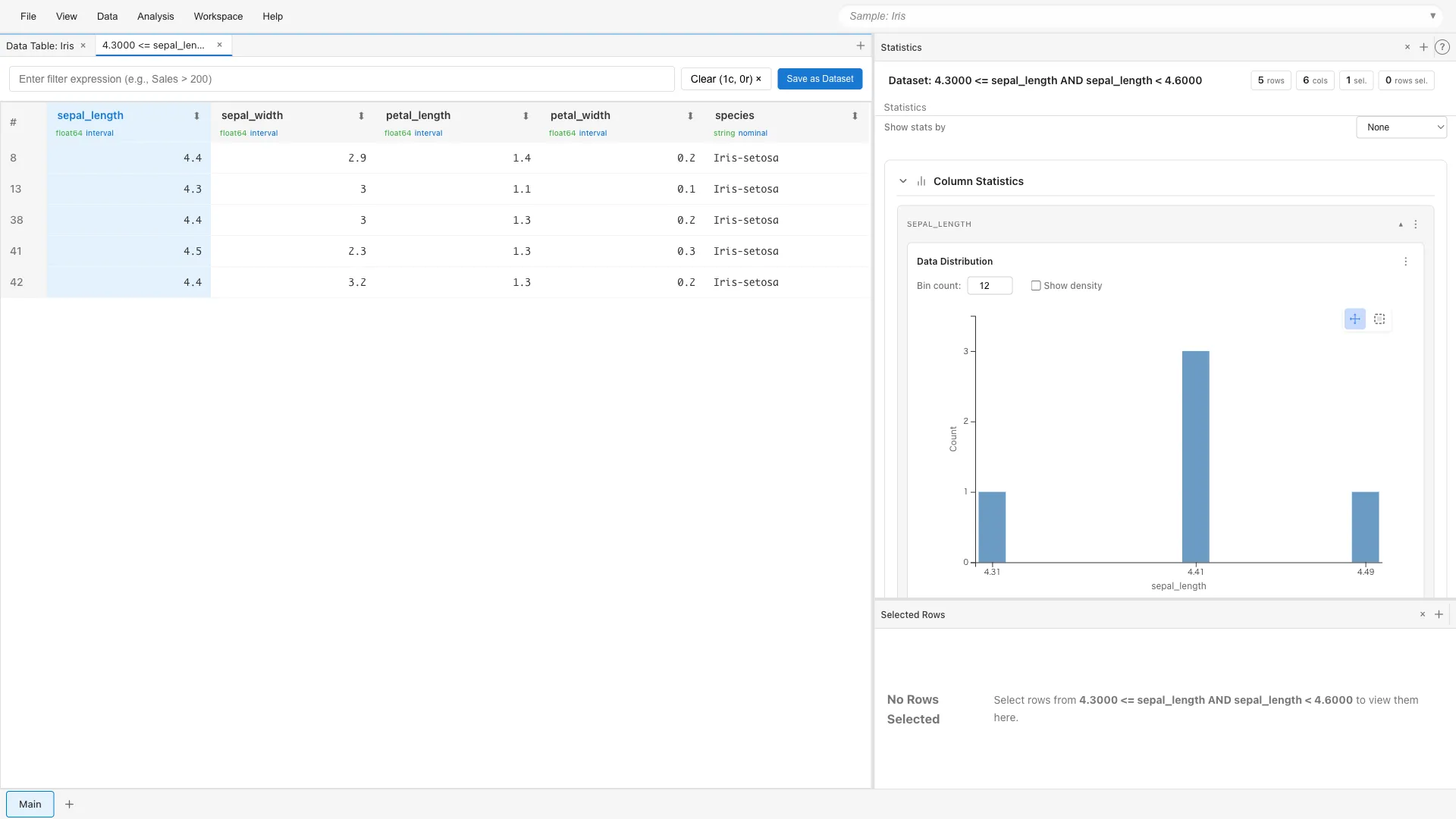

Double-click a bin to open a filtered dataset containing only the data in that bin.

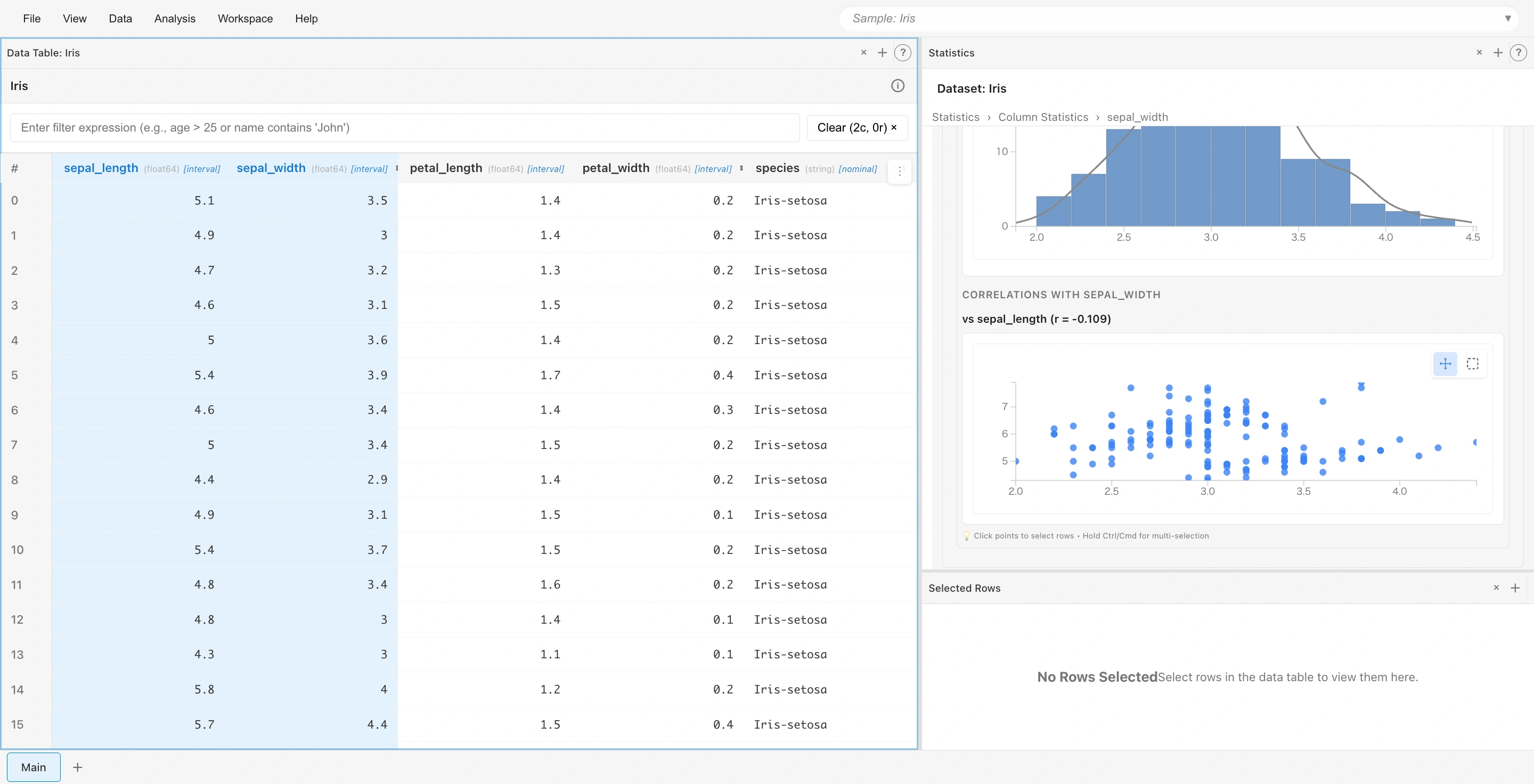

Select two columns to view relationships:

1. With sepal_length selected, Ctrl/Cmd+click sepal_width
2. The Statistics tab displays a scatter plot matrix and statistics comparison

4. Create Graphs

Let's visualize the data to discover patterns.

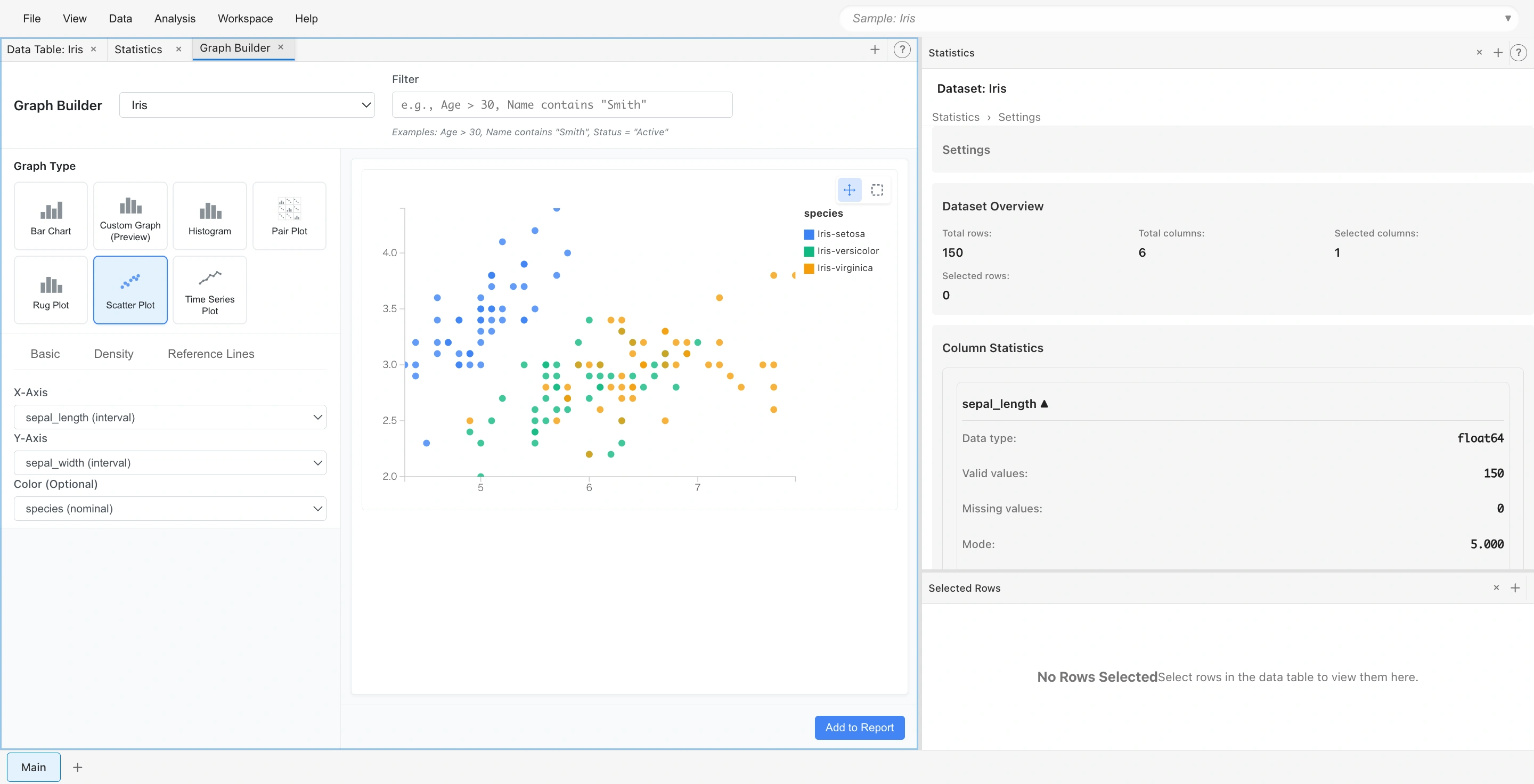

Create a Scatter Plot

1. Select Analysis → Graph Builder... from the menu bar
2. Select Scatter Plot from the Graph Type dropdown
3. Select from each dropdown:
   • X-Axis: sepal_length (interval) (sepal length)
   • Y-Axis: sepal_width (interval) (sepal width)
   • Color (Optional): species (nominal) (iris species)
4. A scatter plot appears, color-coded by species

You can see that data clusters in different regions for each species.

See Creating Graphs and Advanced Graph Creation for more details.

5. Save Your Project

MIDAS offers two ways to save your work.

Save to Browser

1. Select File → Save to Browser (or Ctrl/Cmd+S)
2. The project is automatically saved to your browser

Next time you open MIDAS, saved projects appear in the "Quick Access" section of the launcher screen for quick resumption.

Export as File

1. Select File → Export Project... (or Ctrl/Cmd+Shift+S)
2. Confirm or edit the filename (defaults to project name)
3. Click Save
4. A project file (.mds format) is downloaded

Open an Exported File

1. In the MIDAS launcher screen, click Open File
2. Select a saved .mds file
3. The project loads and restores to its saved state
